Model
|
Diameter (A)
|
Nozzle Component
|
Length
|
Net Weight
|
||
|
Dia.
|
Port
|
|||||
 |
A-22kit
|
26mm
|
22mm
|
6 x Ø1.4mm
|
144mm
|
310g
|
 |
A-11
|
14mm
|
11mm
|
3 x Ø1.4mm
|
142mm
|
260g
|
 |
A-22
|
26mm
|
22mm
|
6 x Ø1.4mm
|
144mm
|
310g
|
Gallery
Click on each image to enlarge.

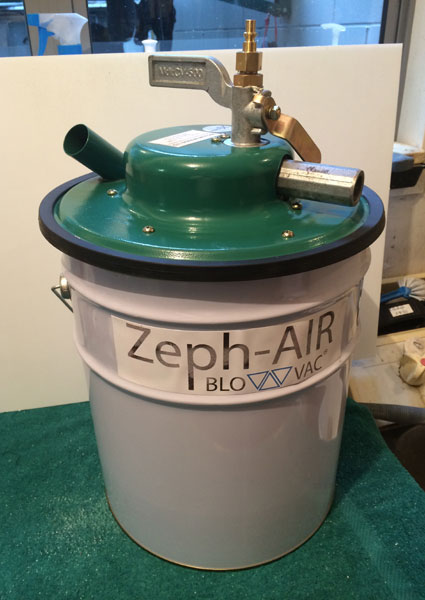

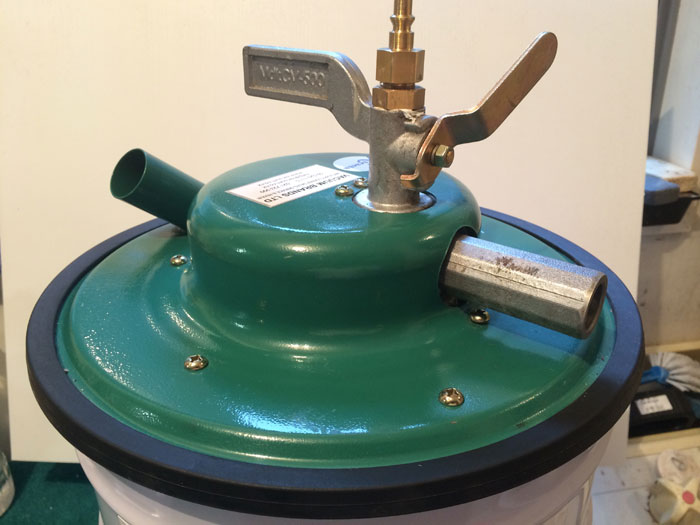

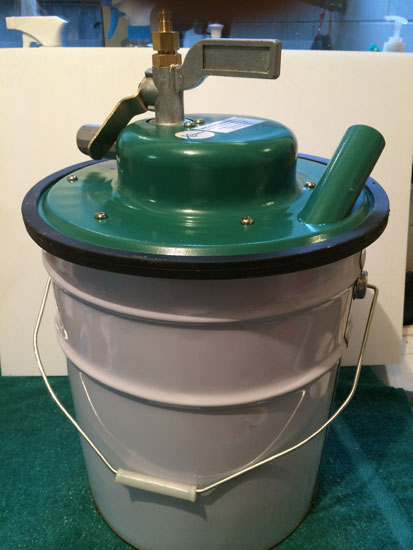

Zeph-AIR pneumatic (venturi) vacuum cleaners
Product code: VBV V500
1. A compact and lightweight industrial vacuum cleaner which works on compressed air.
2. Capable of cleaning off water, oil, and bottom sludge as well as dust and metal chippings.
3. It will even vacuum explosive materials as long as the machine is properly grounded from electrical current.
4. Designed to permit the use of an ordinary pail can with an outside diameter of 300mm to collect the dust and waste.

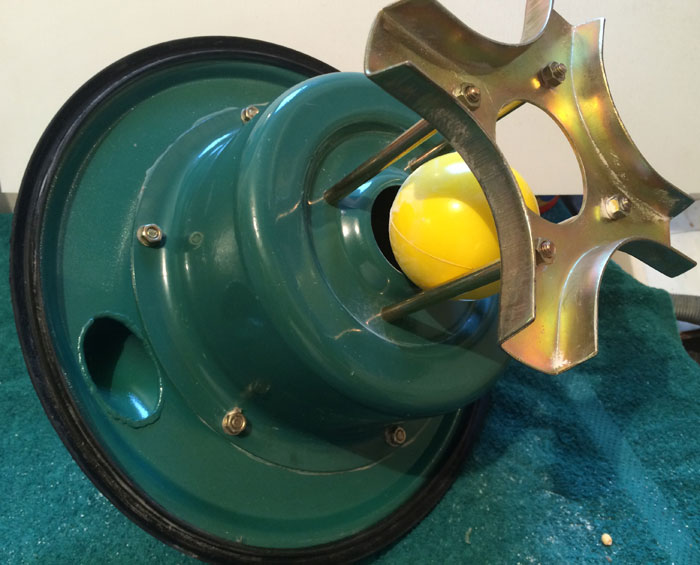

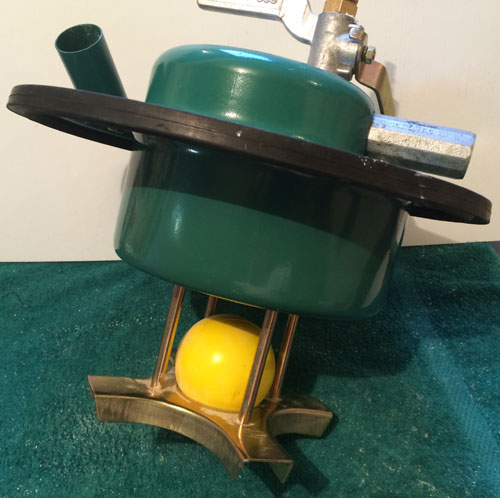

5. Supplied with a pail can, 2 meters of oil resistant hose, and an oil stopper which automatically stops suction when the receiver becomes full
6. Can be operated with Aro 380 or Aro 210 Interchangeable Push-Type quick connect couplings
Click on each image to enlarge.
| Code | 590722 |
| Model | V-500 |
| Recommended air supply pressure | 7 kg/cm2 or 100 psi |
| Approximate air consumption | 14 cfm or 400 litres/min |
| Power | 5 HP |
| Hose size | 32mm diameter x 2 m (oil resisting) |
| Suction nozzle | 32mm diameter/w 14mm 2 types available |
| Air inlet connection | Quick-connect coupling PM-20 |
| Air consumption at 5 kgf/cm2 | 400 ltr/min |
| Vacuum (in water column) at 5 kgf/cm2 | 3000 mm |
| Suction capacity at 5 kgf/cm2 | 2 M3 |
Feel free to telephone us for additional information. We are happy to advise on the right vacuum cleaner for your needs.
